Description

PRODUCT SPECIFICATION

STANDARD FEATURES

• Heavy-duty, long undercarriage.164 hp
• 1-way and 2-way primary auxiliary and 2-way secondary auxiliary circuits.

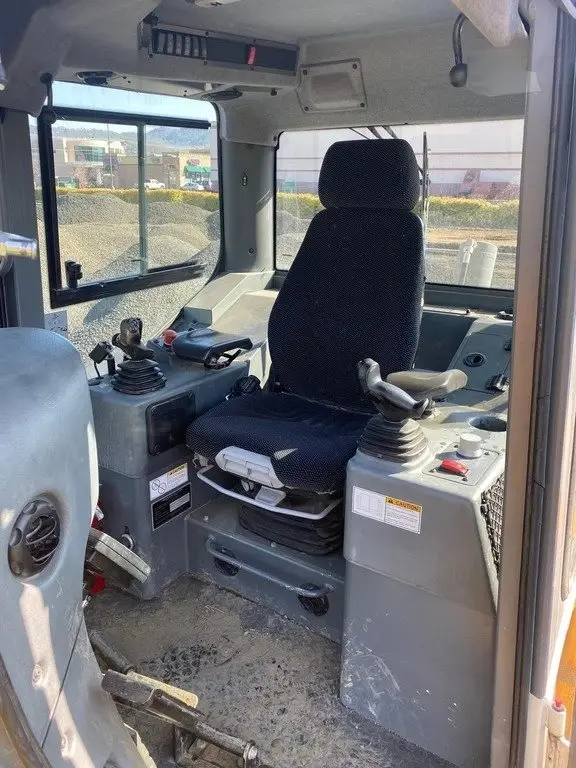

• Heated air ride seat.
• Rear view camera.
• Bright LED work light package.
• Powerful Cummins Engine.

TECHNICAL SPECIFICATIONS

• Operating Weight              51,919 lbs                23 550 k
• Ground Pressure                 5.3 psi                      36.3 kPa

Engine

• Cummins QSB6.7 T4F
• Displacement 408.9 in3 6.7 L
• Gross Power 163.6 HP 122 kW

Hydraulics

• Main Hydraulic Pump Axial Piston – Variable Displacement
• Operating Flow (maximum) 117.3 gal/min 444.0 L/min
• Operating Pressure (maximum) 4,975 psi 34.3 MPa
• Power Boost Pressure (maximum) 5,410 psi 37.3 MPa

Travel Motor

• Travel Pressure (maximum) 4,975 psi 34.3 MPa
• Travel Speeds (maximum) 1.9 / 3.3 mph 3.1 / 5.3 km/hr
• Travel Effort (maximum) 40,466 lbf 180.0 kN
• Grade Capability (maximum) 35*

Swing Motor                                Axial Piston with Swing Brake

• Swing Pressure (maximum) 3,989 psi 27.5 MPa
• Swing Speed (maximum) 10.9 RPM

Undercarriage (standard)              Steel Track

• Track Shoe width (standard) 31” 800 mm
• Track Rollers (per side) 9
• Carrier Rollers (per side) 2

DIMENSIONS

• Boom Length                18’ 8” 5 700 mm
• Stick (Arm) Length        9’ 7” 2 919 mm
• A  Transport Length       31’ 11” 9 728 mm
• B  Transport Width        10’ 5” 3 180 mm
• C  Transport Height      11’ 1” 3 370 mm
• D  Upper Structure Width     8’ 11” 2 710 mm
• E  Cab Height                   10’ 0” 3 050 mm
• F T rack Width (standard shoe)   31” 800 mm
• G  Track Gauge 7’ 10” 2 380 mm
• H  Ground Clearance (minimum) 19” 480 mm
• I  Tail Swing Radius 9’ 6” 2 890 mm
• J  Track Length on Ground 11’ 11” 3 640 mm
• K Track Length 14’ 7” 4 450 mm
